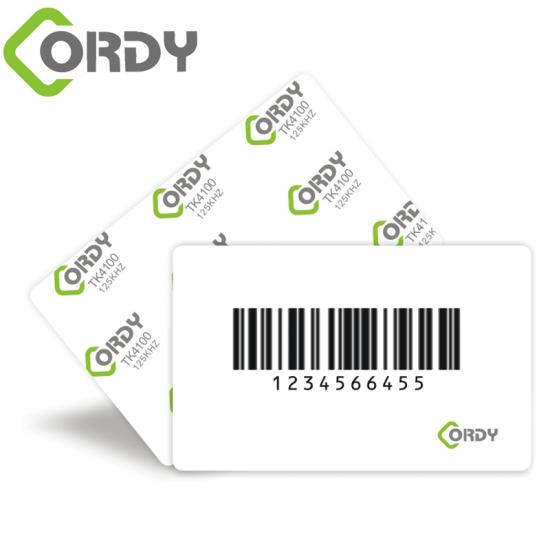

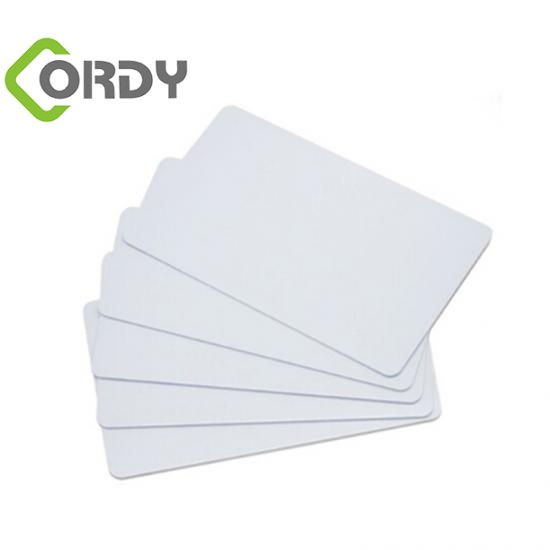

Multi-Chipset PVC RFID Card with Dual Interface and Barcode

The RFID dual card barcode card is a multi-interface card measuring 85.6 x 54 x 0.84 mm (0.76mm, 0.92mm or 0.98mm), made of PVC, PET, PET-G, ABS, PAPER, combining Contact IC or Magnetic Stripe with 125KHz, 13.56MHz, 915MHz or Hybrid chipset, supporting barcode printing with code 3 of 9 and code 128.

Key Features

• Dual Interface Card (ISO, credit card size), 2 chipsets with contact IC in 1 card
• Dimensions: 85.6 x 54 x 0.84 mm (0.76mm, 0.92mm or 0.98mm)
• Material: PVC, PET, PET-G, ABS, PAPER
• Frequency: Contact IC + 125KHz, Contact IC + 13.56MHz, Contact IC + 915MHz, Magnetic Stripe + 125KHz, Magnetic Stripe + 13.56MHz, Magnetic Stripe + 915MHz, Contact IC + Hybrid chipset, Magnetic Stripe + Hybrid chipset
• Common chipsets: TK4100 + 2750oe, TK28 + 2750oe, TK4100 + 300oe, TK28 + 300oe, FM11RF08 + 2750oe, Contact IC + 125KHz/13.56MHz, Barcode Card
• Protocol: ISO11784/ISO11785, ISO18000-2, ISO/IEC14443A, ISO/IEC15693, ISO/IEC18000-6C, ISO/IEC18000-6B, Barcode
• Overlay/lamination (can continue printing with a card printer)
• Off-set printing, Silk-screen printing, Digital printing (photo)
• Magnetic stripe: Hi.Co 2750oe or 4000oe, Lo.Co 300oe or 650oe
• Bar-code: code 3 of 9, code 128
• Scratch-off panel or signature panel

Suitable Applications

• Access Control
• Time Attendance
• Hotel Key Card
• Public transportation
• Event ticketing
• Gaming & identity
• Patrol System

Contact 0935 498 384 for a quote.
